SMCS Go-Kart Software

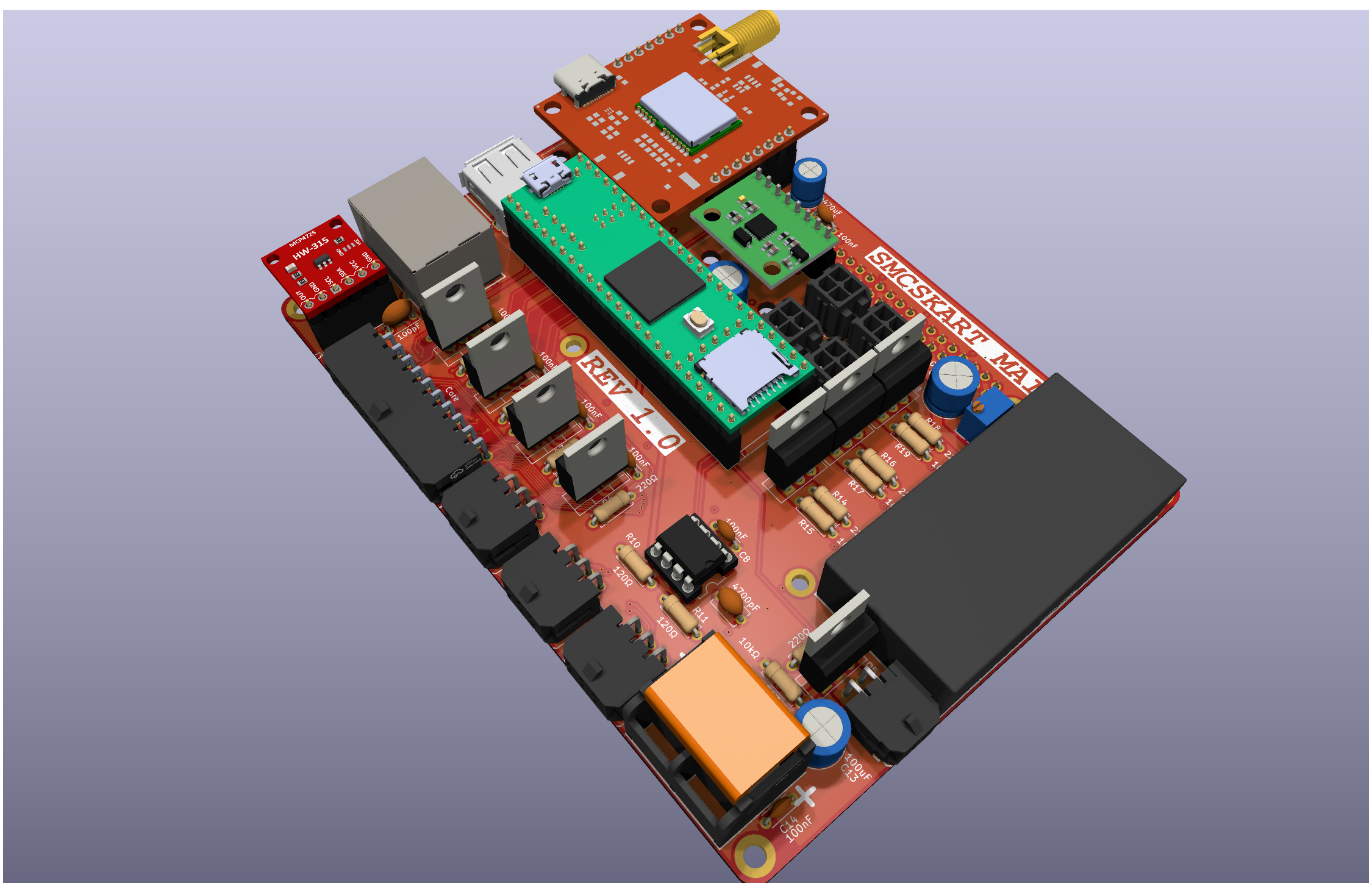

Welcome to the complete software documentation for the SMCS Robotics drive-by-wire go-kart — a full-size electric kart with no mechanical linkage between the driver and the wheels. Everything the kart does (throttle, braking, steering, gear selection, lights) is mediated by software running across three computers on a shared custom mainboard.

This site explains every feature that exists in the code today, how it works, and how to operate it. Where a detail depends on physical hardware that is not captured in the repository, it is called out explicitly rather than guessed at — see Hardware & Open Items for the consolidated list.

Read the Safety page first

The kart has no friction brake — all braking is electronic (ESC motor braking). A motor can move under software command. Before touching hardware, read Safety. Never spin a traction or steering motor without the bench supervisor's explicit go-ahead and the driven wheels lifted.

What the kart is made of

flowchart LR
    Hori["Hori racing wheel<br/>+ pedals (USB)"] -->|USB host| Teensy
    RC["CRSF radio receiver"] -->|Serial3| Teensy
    Teensy["<b>Teensy 4.1</b><br/>kart-core<br/>(motion authority)"] -->|I2C| DAC["MCP4725 DAC"] --> ESC
    Teensy -->|GPIO lines| ESC["FarDriver ND721000<br/>traction ESC → motor"]
    Teensy -->|CAN 250k| Steervo["<b>ESP32</b><br/>Steervo<br/>(steer-by-wire)"]
    Steervo -->|servo PWM| Talon["Talon SRX → CIM<br/>→ 50:1 gearbox → steering"]
    Teensy <-->|UART 115200| Pi["<b>Raspberry Pi 4</b><br/>bridge + dashboard<br/>(advisory only)"]
    Pi --> Kiosk["React kiosk<br/>(800×480 touchscreen)"]
Component Role Documented in
Teensy 4.1 — kart-core The single motion authority. Runs the drive state machine, reads the wheel/pedals and the CRSF radio, drives the throttle DAC and the ESC's discrete lines, sequences the precharge/contactor, and commands steering over CAN. Drive Control
ESP32 — Steervo Steer-by-wire controller. Runs a closed-loop position controller against a steering potentiometer and drives the Talon SRX by servo PWM. Steering
Raspberry Pi 4 Dashboard, telemetry, GPS, and the browser↔Teensy bridge. Advisory only — nothing it sends can move the kart. Dashboard
React kiosk The touchscreen UI (Drive, Map, Camera, Lights, System tabs). Dashboard tabs

The authority model (why the kart is safe by design)

The Teensy is the only device that can produce motion. The Pi and the dashboard can request things (set an LED color, ask to view telemetry) but the Teensy's drive state machine gates every output that can move the kart. A crashed, disconnected, or compromised Pi has zero effect on driving. Likewise, the Steervo never energizes the steering motor except on a fresh, valid stream of setpoints from the Teensy.

Read the full reasoning in System Architecture.

Firmware versions documented here

This documentation describes the current, finished product (not the development history):

Firmware Version Notes
kart-core (Teensy 4.1) 0.5.2-rc Wheel + CRSF remote driving, LED effects
steervo (ESP32) 0.3.x Closed-loop steering with self-recovering fault handling

Build configuration

kart-core currently ships with KART_TRACTION_ONLY_BENCH = 1 — a stands-only build in which steering health does not gate DRIVE. This is a one-line change (src/config.h) that must be 0 for any build that will ever touch the ground. See the Drive State Machine.
